Product Summary
The XC9572XL-10VQ64C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications communications and computing systems. It is comprised of four 54V18 Function Blocks, providing 1,600 usable gates with propagation delays of 5 ns.
Parametrics
XC9572XL-10VQ64C absolute maxing ratings: (1)VCC Supply voltage relative to GND: –0.5 to 4.0 V; (2)VIN Input voltage relative to GND: –0.5 to 5.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to 5.5 V; (4)TSTG Storage temperature (ambient): –65 to +150 oC; (5)TSOL Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm): +260 ℃; (6)TJ Junction temperature: +150 ℃.
Features
XC9572XL-10VQ64C features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)72 macrocells with 1,600 usable gates; (4)Fast concurrent programming; (5)Slew rate control on individual outputs; (6)Enhanced data security features; (7)Pin-compatible with 5V-core XC9572 device in the 44-pin PLCC package and the 100-pin TQFP package.

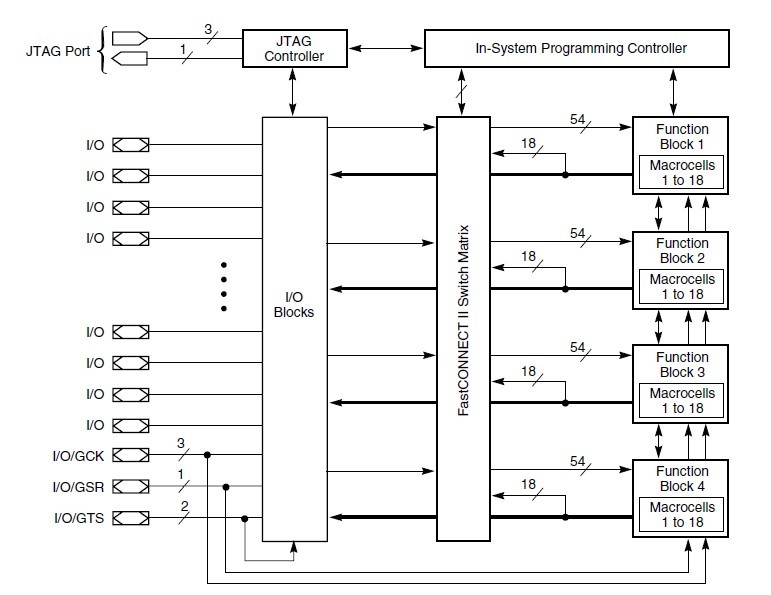

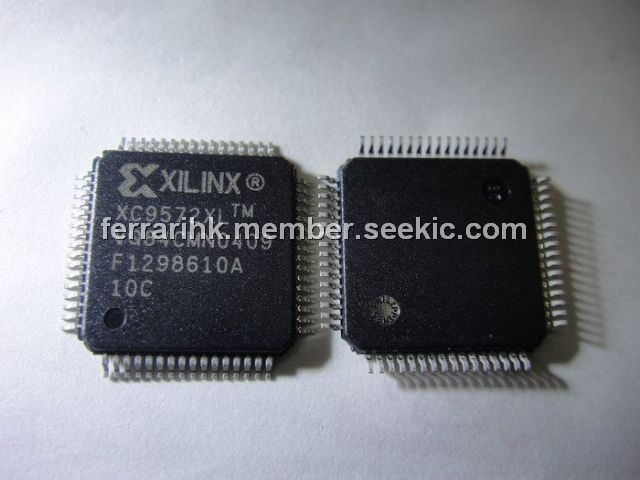

Diagrams
