Product Summary

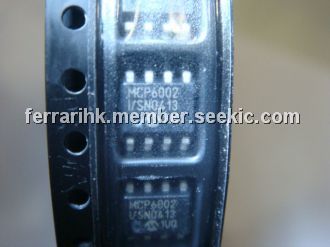

The MCP6002-I/SN operational amplifier (op amp) is specifically designed for general-purpose applications. The MCP6002-I/SN has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typ.). It also maintains 45° phase margin (typ.) with a 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typ.) quiescent current. Additionally, the MCP6002-I/SN supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS – 300 mV. This family of op amps is designed with Microchip’s advanced CMOS process. The MCP6002-I/SN is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 5.5V.
Parametrics
MCP6002-I/SN absolute maximum ratings: (1)VDD – VSS: 7.0V; (2)All Inputs and Outputs: VSS – 0.3V to VDD + 0.3V; (3)Difference Input Voltage: VDD – VSS|; (4)Current at Input Pins: ±2 mA; (5)Current at Output and Supply Pins: ±30 mA; (6)Storage Temperature: -65°C to +150°C; (7)Maximum Junction Temperature (TJ): +150°C; (8)ESD Protection On All Pins (HBM;MM): ≥ 4 kV; 200V.
Features
MCP6002-I/SN features: (1)Available in SC-70-5 and SOT-23-5 packages; (2)Gain Bandwidth Product: 1 MHz (typ.); (3)Rail-to-Rail Input/Output; (4)Supply Voltage: 1.8V to 5.5V; (5)Supply Current: IQ = 100 μA (typ.); (6)Phase Margin: 90° (typ.); (7)Temperature Range of Industrial: -40°C to +85°C; (8)Temperature Range of Extended: -40°C to +125°C; (9)Available in Single, Dual and Quad Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP6002-I/SN |
Microchip Technology |
Operational Amplifiers - Op Amps Dual 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MCP6001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MCP6001RT-E/OT |
Microchip Technology |
Operational Amplifiers - Op Amps Single 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
|
MCP6001RT-I/OT |
Microchip Technology |
Operational Amplifiers - Op Amps Single 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
|
MCP6001T-E/LT |
Microchip Technology |
Operational Amplifiers - Op Amps Single 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
|
MCP6001T-E/OT |
Microchip Technology |
Operational Amplifiers - Op Amps Single 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
|
MCP6001T-I/LT |
Microchip Technology |
Operational Amplifiers - Op Amps Single 1.8V 1MHz |
Data Sheet |
|
|
||||||||||||
