Product Summary

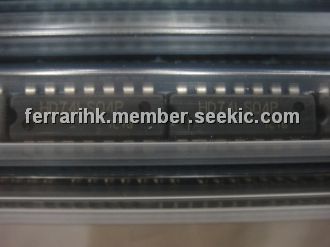

The HD74LS04P is a Hex Inverter (with Open Collector Outputs).
Parametrics
HD74LS04P absolute maximum ratings: (1)Supply voltage:7 V ; (2)Input voltage:7 V ; (3)Power dissipation:400 mW ; (4)Storage temperature:–65 to +150℃.
Features
HD74LS04P features: (1)Input voltage: 2.0V; (2)Output voltage: 2.7V; (3)Input current: 20uA; (4)Short-circuit output current: -20 to -100mA; (5)Supply current: 1.2 to 2.4mA; (6)Input clamp voltage: -1.5V.
Diagrams
 |
