Product Summary

The HT1621B is a 128 pattern (32*4), memory mapping, and multi-function LCD driver. The S/W configuration feature of the device makes it suitable formultiple LCD applications including LCD modules and display sub-systems. Only three or four lines are required for the interface between the host controller and the HT1621B. The device contains a power down command to reduce power consumption.

Parametrics

HT1621B absolute maximum ratings: (1)Supply Voltage:VSS-0.3V to VSS+5.5V ; (2)Storage Temperature:-50℃ to 125℃; (3)Input Voltage:VSS-0.3V to VDD+0.3V ; (4)Operating Temperature:-25℃ to 75℃.

Features

HT1621B features: (1)Operating voltage: 2.4V to 5.2V; (2)Built-in 256kHz RC oscillator; (3)External 32.768kHz crystal or 256kHz frequency source input; (4)Selection of 1/2or1/3 bias, and selection of 1/2or 1/3 or 1/4 duty LCD applications; (5)Internal time base frequency sources; (6)Two selectable buzzer frequencies (2kHz/4kHz); (7)Power down command reduces power consumption; (8)Built-in time base generator and WDT; (9)Time base or WDT overflow output; (10)8 kinds of time base/WDT clock sources; (11)32*4 LCD driver; (12)Built-in 324 bit display RAM; (13)3-wire serial interface; (14)Internal LCD driving frequency source; (15)Software configuration feature; (16)Data mode and command mode instructions; (17)R/W address auto increment; (18)Three data accessing modes; (19)VLCD pin for adjusting LCD operating voltage; (20)48-pin DIP/SSOP/LQFP package.

Diagrams

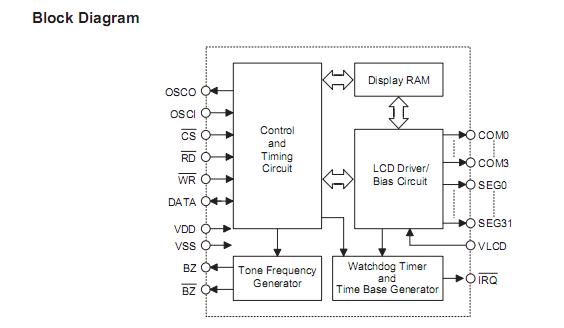

HT1621B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

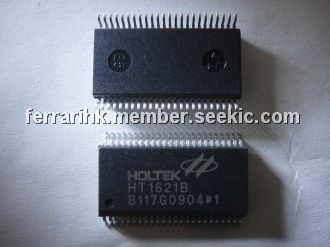

HT1621B
HT1621B

Other


Data Sheet

Negotiable
