Product Summary

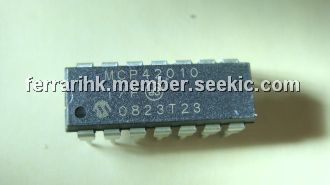

The MCP42010I-P is a Dual Digital Potentiometer with SPI Interface. It contains two independent channels in a 14-pin PDIP, SOIC or TSSOP package. The wiper position of the MCP42010I-P varies linearly and is controlled via an industry-standard SPI interface. The device consumes <1 μA during static operation. The MCP42010I-P operates from a single 2.7 - 5.5V supply and is specified over the extended and industrial temperature ranges.

Parametrics

MCP42010I-P absolute maximum ratings: (1)VDD: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V; (3)Storage temperature: -60℃ to +150℃; (4)Ambient temp. with power applied: -60℃ to +125℃; (5)ESD protection on all pins: ≥ 2 kV.

Features

MCP42010I-P features: (1)256 taps for each potentiometer; (2)Potentiometer values for 10 kΩ, 50 kΩ and 100 kΩ; (3)Single and dual versions; (4)SPIserial interface (mode 0,0 and 1,1); (5)±1 LSB max INL & DNL; (6)Low power CMOS technology; (7)1μA maximum supply current in static operation; (8)Multiple devices can be daisy-chained together; (9)Shutdown feature open circuits of all resistors for maximum power savings; (10)Hardware shutdown pin available on MCP42XXX only; (11)Single supply operation (2.7V - 5.5V); (12)Industrial temperature range: -40℃ to +85℃; (13)Extended temperature range: -40℃ to +125℃.

Diagrams

MCP42010I-P block diagram
