Product Summary

The LMC660CM CMOS Quad operational amplifier is ideal for operation from a single supply. It operates from +5V to +15V and features rail-to-rail output swing in addition to an input common-mode range that includes ground. The applications of the LMC660CM are High-impedance buffer or preamplifier, Precision current-to-voltage converter, Long-term integrator, Sample-and-Hold circuit, Peak detector, Medical instrumentation, Industrial controls, Automotive sensors.

Parametrics

LMC660CM absolute maximum ratings: (1)Differential Input Voltage: ±Supply Voltage; (2)Supply Voltage: 16V; (3)Lead Temperature(Soldering, 10 sec.): 260℃; (4)Storage Temp. Range: -65℃ to +150℃; (5)Voltage at Input/Output Pins: (V+) + 0.3V, (V-) - 0.3V; (6)Current at Output Pin: ±18 mA; (7)Current at Input Pin: ±5mA; (8)Current at Power Supply Pin: 35 mA; (9)Junction Temperature: 150℃; (10)ESD tolerance: 1000V.

Features

LMC660CM features: (1)Rail-to-rail output swing; (2)Specified for 2 kΩ and 600Ω loads; (3)High voltage gain: 126 dB; (4)Low input offset voltage: 3 mV; (5)Low offset voltage drift: 1.3 μV/℃.

Diagrams

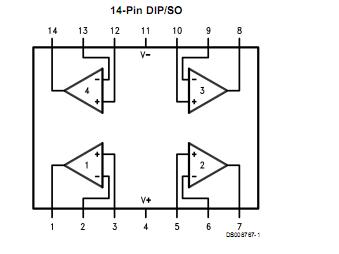

LMC660CM block diagram
