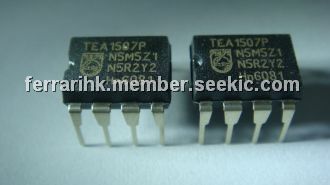

TEA1507P

SOP-14, Switched Mode Power Supply, controller IC, Safe restart mode, Short winding protection, -0.4 to +20 V, 1.0W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.79~1.42 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.79~1.42

PartNumber:: TEA1507P

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-24

From Other Seller

Part Number:TEA1507P
US $0.79 - 1.42
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

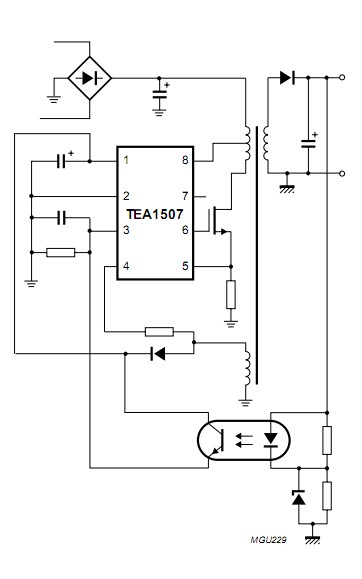

Product Summary

The TEA1507P is the second generation of green Switched Mode Power Supply (SMPS) controller IC operating directly fromthe rectified universalmains. A high level of integration leads to a cost effective power supply with a very low number of external components. The special built-in green functions of the TEA1507P allow the efficiency to be optimum at all power levels. This holds for quasi-resonant operation at high power levels, as well as fixed frequency operation with valley switching at medium power levels. At low power (standby) levels, the system operates at reduced frequency and with valley detection.

Parametrics

TEA1507P absolute maximum ratings: (1)pin 1 (VCC) continuous: -0.4 to +20 V; (2)pin 3 (CTRL): -0.4 to +5 V; (3)pin 4 (DEM) current limited: -0.4 min V; (4)pin 5 (Isense) current limited: -0.4 min V; (5)pin 8 (DRAIN): -0.4 to +650 V; (6)pin 3 (CTRL) d < 10%: +50 max mA; (7)pin 4 (DEM): -250 to +250 μA; (8)pin 5 (Isense): -1 to +10 mA; (9)pin 6 (DRIVER) d < 10%: -0.8 to +2 A; (10)pin 8 (DRAIN): +5 max mA; (11)total power dissipation Tamb <55℃: 1.0 W; (12)storage temperature: -55 to +150℃; (13)virtual junction temperature: -20 to +145℃.

Features

TEA1507P features: (1)Safe restart mode for system fault conditions; (2)Continuous mode protection by means of demagnetization detection (zero switch-on current); (3)Accurate and adjustable overvoltage protection; (4)Short winding protection; (5)Undervoltage protection (foldback during overload); (6)Overtemperature protection; (7)Low and adjustable overcurrent protection trip level; (8)Soft (re)start; (9)Mains voltage-dependent operation-enabling level.
