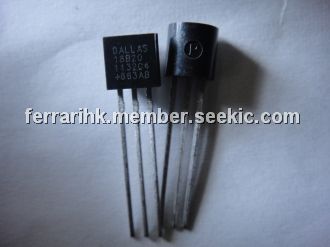

DS18B20

Digital Thermometer, TO-92, 3 V ~ 5.5 V, DS18B20, Maxim, 9 to 12 Bits

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.76~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.76~1.10

PartNumber:: DS18B20

Brand:: Dallas Semiconductor - Maxim | Pack: TO | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-19

From Other Seller

Part Number:DS18B20
US $0.76 - 1.10
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

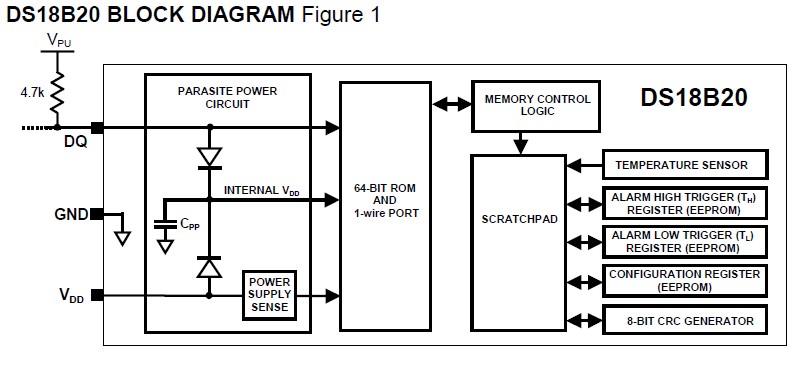

The DS18B20 is a Digital Thermometer. It provides 9 to 12–bit centigrade temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. In addition, the DS18B20 can derive power directly from the data line (parasite power), eliminating the need for an external power supply.

Parametrics

DS18B20 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +6.0V; (2)Operating Temperature Range: -55℃ to +125℃; (3)Storage Temperature Range: -55℃ to +125℃; (4)Solder Temperature: See IPC/JEDEC J-STD-020A; (5)Reflow Oven Temperature: +220℃.

Features

DS18B20 features: (1)Unique 1-Wire interface requires only one port pin for communication; (2)Each device has a unique 64-bit serial code stored in an onboard ROM; (3)Multidrop capability simplifies distributed temperature sensing applications; (4)Requires no external components; (5)Can be powered from data line. Power supply range is 3.0V to 5.5V; (6)Measures temperatures from -55℃ to +125℃ (-67°F to +257°F); (7)±0.5℃ accuracy from -10℃ to +85℃; (8)Thermometer resolution is user-selectable from 9 to 12 bits; (9)Converts temperature to 12-bit digital word in 750ms (max.); (10)User-definable nonvolatile (NV) alarm settings; (11)Alarm search command identifies and addresses devices whose temperature is; (12)outside of programmed limits (temperature alarm condition); (13)Available in 8-pin SO (150mil), 8-pin SOP, and 3-pin TO-92 packages; (14)Software compatible with the DS1822; (15)Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system.
