Product Summary

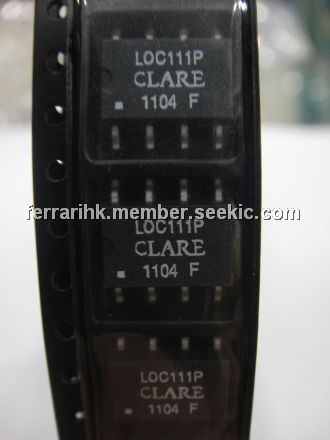

The LOC111P is a linear optocoupler for use in telecom, medical and power supply isolation circuits. It is available in 8 pin DIP, surface mount or flatpack packages. The applications of the LOC111P are Modem Transformer Replacement With No Insertion Loss, Digital Telephone Isolation, Power Supply Feedback Voltage/Current, Medical Sensor Isolation, Audio Signal Interfacing, Isolation of Process Control Transducers.
Parametrics
LOC111P absolute maximum ratings: (1)Input Power Dissipation:150 mW; (2)Input Control Current:100 mA; (3)Peak (10ms):1 A; (4)Total Package Dissipation:8002 mW; (5)Isolation Voltage: 3750VRMS; (6)Operational Temperature: -40 to +85 °C; (7)Storage Temperature:-40 to +125 °C; (8)Soldering Temperature:+220 °C(10 Seconds Max); (9)Flatpack Package:+260 °C.
Features
LOC111P features: (1)8 Pin Flatpack or DIP PAckage (PCMCIA Compatible); (2)Couples Analog and Digital Signals; (3)Wide Bandwidth (>200kHz); (4)High Gain Stability; (5)Low Input/Output Capacitance; (6)Low Power Consumption; (7)0.01% Servo Linearity; (8)THD 87dB Typical; (9)Machine Insertable, Wave Solderable; (10)Surface Mount and Tape Reel Versions Available; (11)VDE Compatible.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LOC111P |
Clare |
High Linearity Optocouplers Linear Optocoupler |
Data Sheet |
Negotiable |
|
||||||
|
LOC111P-D |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
 |
LOC111PTR |
Clare |
High Linearity Optocouplers Linear Optocoupler |
Data Sheet |
Negotiable |
|
||||||
|
LOC111P-E |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
|
LOC111P-F |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
|
LOC111P-G |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
|
LOC111PTR-D |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
|
LOC111PTR-E |
Clare |
OPTOCOUPLER TRANSISTOR 8 FLTPK |
Data Sheet |
|
|
||||||
