Product Summary

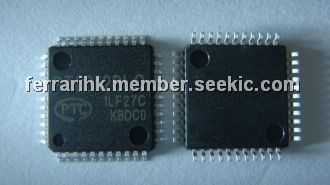

The PT6312BLQ is a Vacuum Fluorescent Display (VFD) Controller driven on a 1/4 to 1/11 duty factor. Eleven segment output lines, 6 grid output lines, 5 segment/grid output drive lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip micro computer. The application of the PT6312BLQ is Micro-computer Peripheral Device.
Features
PT6312BLQ features: (1)CMOS Technology; (2)Low Power Consumption; (3)Key Scanning (6 x 4 matrix); (4)Multiple Display Modes: (11 segments, 11 digits to 16 segments, 6 digits); (5)8-Step Dimming Circuitry; (6)LED Ports Provided (4 channels, 20 mA max.); (7)4- Bits General Purpose Input Ports Provided; (8)Serial Interface for Clock, Data Input, Data Output, Strobe Pins; (9)No External Resistors Needed for Driver Outputs; (10)Functional Compatibility with uD16312; (11)Available in 44-pin, QFP or LQFP Package.

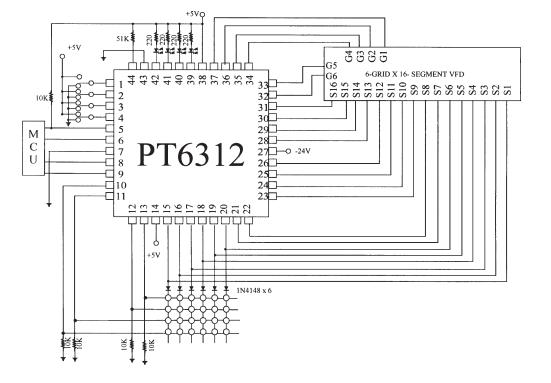

Diagrams
 |
