Product Summary
The Allegro ACS756SCA-050B current sensor IC provides economical and precise solutions for AC or DC current sensing in industrial, automotive, commercial, and communications systems. The ACS756SCA-050B package allows for easy implementation by the customer. Typical applications of the ACS756SCA-050B include motor control, load detection and management, power supplies, and overcurrent fault protection.
Parametrics
ACS756SCA-050B absolute maximum ratings: (1)Forward Supply Voltage:8V; (2)Reverse Supply Voltage:–0.5 V; (3)Forward Output Voltage:28 V; (4)Reverse Output Voltage:–0.5 V; (5)Maximum Junction TJ(max): 165 ℃; (6)Storage Temperature:–65 to 165 ℃.
Features
ACS756SCA-050B features: (1)Industry-leading noise performance through proprietary amplifier and filter design techniques ; (2)Total output error 0.8% at TA = 25°C; (3)Small package size, with easy mounting capability; (4)Monolithic Hall IC for high reliability; (5)Ultra-low power loss: 130 μΩ internal conductor resistance; (6)3 kVRMS minimum isolation voltage from pins 1-3 to pins 4-5; (7)3.0 to 5.0 V, single supply operation; (8)3 μs output rise time in response to step input current; (9)20 or 40 mV/A output sensitivity; (10)Output voltage proportional to AC or DC currents; (11)Factory-trimmed for accuracy; (12)Extremely stable output offset voltage; (13)Nearly zero magnetic hysteresis.

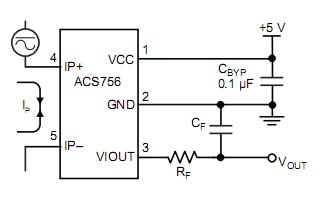

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ACS756SCA-050B-PFF-T |
|
IC HALL EFFECT SENSOR MOD 5PIN |
Data Sheet |
|
|
||||||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
 |
ACS704ELC-005 |
|
SENSOR CURRENT 5A 5V BI 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
ACS704ELC-015 |
|
SENSOR CURRENT 15A 5V BI 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
ACS706ELC-05C |
|
SENSOR CURRENT 5A 5V BI 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
 |
ACS709LLF-6BB-T |
|
IC CURRENT SENSOR 24-QSOP |
Data Sheet |
|
|
||||||||||||||||||||||
 |
ACS709LLFTR-20BB-T |
|
SENSOR CURR 37.5A 5V BI 24QSOP |
Data Sheet |
|
|
||||||||||||||||||||||
|
ACS709LLFTR-35BB-T |
|
SENSOR CURRENT 75A 5V BI 24QSOP |
Data Sheet |
|
|
||||||||||||||||||||||
