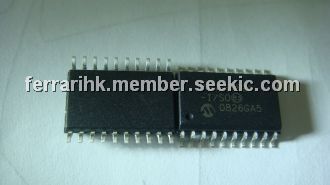

PIC16F690-I/SO

SOP20, 20-pin flash-based, 8-Bit CMOS microcontroller, nanoWatt technology, 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.15~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.15~1.50

PartNumber:: PIC16F690-I/SO

Brand:: Microchip Technology - Microchip | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-11

From Other Seller

Part Number:PIC16F690-I/SO
US $1.15 - 1.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16F690-I/SO is a 20-pin flash-based, 8-Bit CMOS microcontroller with nanoWatt technology.

Parametrics

PIC16F690-I/SO absolute maximum ratings: (1)Ambient temperature under bias: 40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA, PORTB and PORTC (combined): 200 mA.

Features

PIC16F690-I/SO features: (1)Power-Saving Sleep mode; (2)Wide operating voltage range (2.0V-5.5V); (3)Industrial and Extended Temperature range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with software control option; (7)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (8)Multiplexed Master Clear/Input pin; (9)Programmable code protection.
