Product Summary

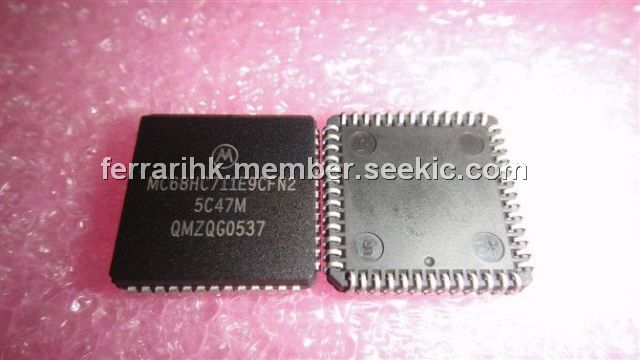

The MC68HC711E9CFN is an 8 bit microcontroller unit (MCU). This MCU combine the M68HC11 central processor unit (CPU) with high-performance, on-chip peripherals. The MC68HC711E9CFN is comprised of many devices with various configurations of random-access memory (RAM), read-only memory (ROM), erasable programmable read-only memory (EPROM) and so on.
Parametrics
MC68HC711E9CFN absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +7.0V; (2)Input voltage, VIn: –0.3 to +7.0V; (3)Current drain per pin, excluding VDD, VSS, AVDD, VRH, VRL, and XIRQ/VPPE, ID: 25mA; (4)Storage temperature, TSTG: –55 to +150℃.
Features
MC68HC711E9CFN features: (1)M68HC11 CPU; (2)Power-saving stop and wait modes; (3)Low-voltage devices available (3.0–5.5 Vdc); (4)0, 256, 512, or 768 bytes of on-chip RAM, data retained during standby; (5)0, 12, or 20 Kbytes of on-chip ROM or EPROM; (6)0, 512, or 2048 bytes of on-chip EEPROM with block protect for security; (7)2048 bytes of EEPROM with selectable base address in the MC68HC811E2; (8)Asynchronous non-return-to-zero (NRZ) serial communications interface (SCI); (9)Additional baud rates available on MC68HC(7)11E20; (10)Synchronous serial peripheral interface (SPI); (11)8-channel, 8-bit analog-to-digital (A/D) converter.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC711E9CFN2 |
|
IC MCU 12K 2MHZ OTP 52-PLCC |
Data Sheet |
Negotiable |
|
||||
|
MC68HC711E9CFN3 |
|
IC MCU 3MHZ 12K OTP 52-PLCC |
Data Sheet |
Negotiable |
|
||||
 |
MC68HC711E9CFNE2 |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8B OTP 512RAM A/D EE |
Data Sheet |
Negotiable |
|
||||
|
MC68HC711E9CFNE3 |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8B OTP 512RAM A/D EE |
Data Sheet |
Negotiable |
|
||||
