Product Summary
The ATMEGA32-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA32-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA32-16AU maximum ratings: absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET; (4)with respect to Ground: -0.5V to VCC+0.5V; (5)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (6)Maximum Operating Voltage: 6.0V; (7)DC Current per I/O Pin: 40.0 mA; (8)DC Current VCC and GND Pins: 200.0 mA and 400.0 mA TQFP/MLF.
Features
ATMEGA32-16AU features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)Boundary-scan Capabilities According to the JTAG Standard; (5)Extensive On-chip Debug Support; (6)Real Time Counter with Separate Oscillator; (7)Four PWM Channels; (8)8-channel, 10-bit ADC; (9)Power-on Reset and Programmable Brown-out Detection; (10)Internal Calibrated RC Oscillator; (11)External and Internal Interrupt Sources.

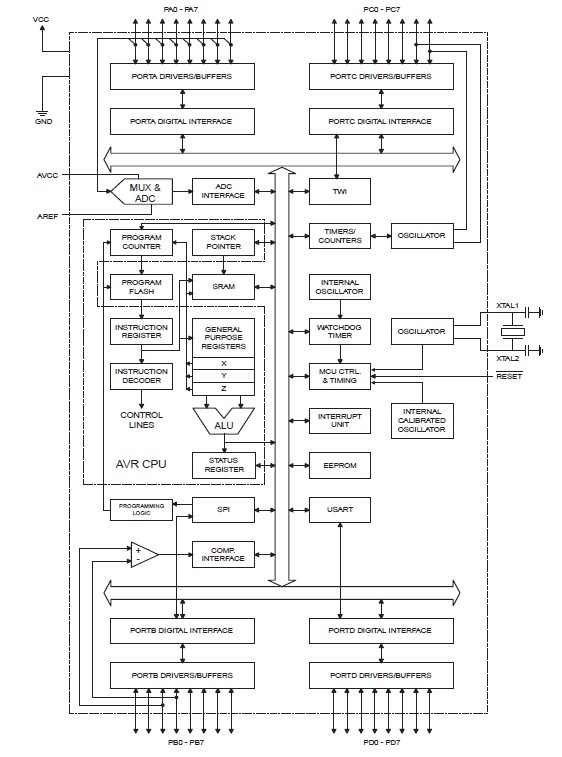

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATmega32-16AU |
Atmel |
8-bit Microcontrollers (MCU) 32kB Flash 1kB EEPROM 32 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATMEGA32-16AUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 32KB FLSH 1KB EE 2KB SRAM-16MHz, IND |
Data Sheet |
|
|
||||||||||||
