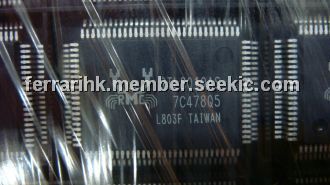

RTL8019AS

Product Summary

The RTL8019AS is a highly integrated Ethernet Controller which offers a simple solution to implement a Plug and Play NE2000 compatible adapter with full-duplex and power down features. With the three level power down control features, the RTL8019AS is made to be an ideal choice of the network device for a GREEN PC system. The RTL8019AS full-duplex function enables simultaneously transmission and reception on the twisted-pair link to a full-duplex Ethernet switching hub. The RTL8019AS feature not only increases the channel bandwidth from 10 to 20 Mbps but also avoids the performance degrading problem due to the channel contention characteristics of the Ethernet CSMA/CD protocol. However, for special applications not to be used as a Plug and Play compatible device, the RTL8019AS also supports the jumper and proprietary jumperless options. To offer a fully plug and play solution, the RTL8019AS provides the auto-detect capability between the integrated 10BaseT transceiver, BNC and AUI interface. The RTL8019AS is built in with 16K-byte SRAM in a single chip. The RTL8019AS is designed not only to provide more friendly functions but also to save the effort of SRAM sourcing and inventory.

Parametrics

RTL8019AS absolute maximum ratings: (1)Operating Temperature: 0℃ to 70℃; (2)Storage Temperature: -65℃to 140℃; (3)All Outputs and Supply Voltages, with respect to Ground: -0.5V to 7V; (4)Power Dissipation.

Features

RTL8019AS features: (1)RTL8019 software compatible ; (2)Supports PnP auto detect mode; (3)Compliant to Ethernet II and IEEE802.3 10Base5, 10Base2, 10BaseT; (4)Software compatible with NE2000 on both 8 and 16-bit slots; (5)Supports both jumper and jumperless modes ; (6)Supports Microsoft‘s Plug and Play configuration for jumperless mode; (7)Supports Full-Duplex Ethernet function to double channel bandwidth; (8)Supports three level power down modes: Sleep, Power down with internal clock running, Power down with internal clock halted ; (9)Built-in data prefetch function to improve performance; (10)Supports UTP, AUI & BNC auto-detect; (11)Supports auto polarity correction for 10BaseT; (12)Support 8 IRQ lines; (13)Supports 16 I/O base address options and extra I/O address fully decode mode ; (14)Supports 16K, 32K, 64K and 16K-page mode access to BROM (up to 256 pages with 16K bytes/page); (15)Supports BROM disable command to release memory after remote boot; (16)Supports flash memory read/write; (17)16k byte SRAM built in ; (18)Use 9346 (64*16-bit EEPROM) to store resource configurations and ID parameters; (19)Capable of programming blank 9346 on board for manufacturing convenience; (20) Support 4 diagnostic LED pins with programmable outputs.

Diagrams
