Product Summary
The GS72116TP-12 is a high speed CMOS static RAM organized as 131072-words by 16-bits. Static design eliminates the need for external clocks or timing strobes. Operating on a single 3.3V power supply and all inputs and outputs are TTL compatible.
Parametrics
GS72116TP-12 absolute maximum ratings: (1)fast access time:8,10,12,15ns; (2)CMOS low power operation; (3)single 3.3V±0.3V power supply; (4)all inputs and outputs are TTL compatible; (5)byte control; (6)fully static operation.
Features
GS72116TP-12 features: (1)fast access time:8,10,12,15ns; (2)CMOS low power operation; (3)single 3.3V±0.3V power supply; (4)all inputs and outputs are TTL compatible; (5)byte control; (6)fully static operation.

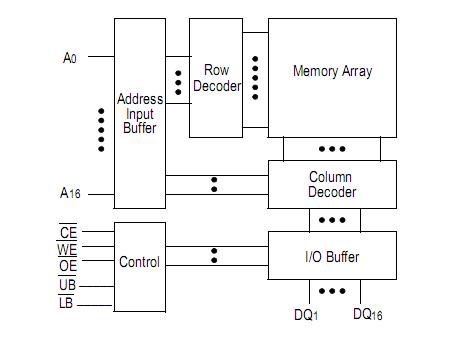

Diagrams
 |
