Product Summary

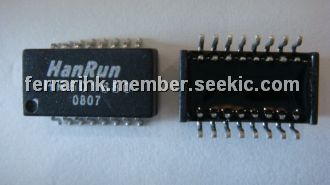

The HR601680 is a transformer module.

Parametrics

HR601680 absolute maximum ratings: (1)turns ratio, TX: 1CT:1CT; RX: 1CT:1CT; (2)insertion loss: -1.1dB max at 0.3 to 100MHz; (3)return loss: -18dB max at 1 to 30MHz; -13dB max at 60MHz; -11dB max at 80MHz; (4)crosstalk: -40dB max at 30MHz; -30dB max at 60MHz; -30dB max at 100MHz; (5)isolation: 1500Vrms min; (6)form: SMT.

Features

HR601680 features: (1)small form factor for board layout efficiency; (2)minimum isolation voltage: 1500Vrms; (3)meets all IEEE802.3 and ANSI×3.263 standards including 350μH minimum OCL with 8mA bias.

Diagrams

HR601680 block diagram
