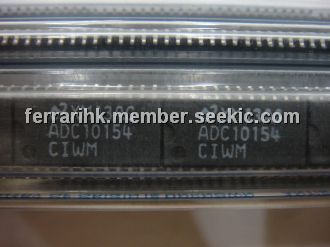

ADC10154CIWM

10-Bit Plus Sign 4μs ADC , 4-Channel MUX, Track/Hold and Reference, 33 MW, 4.4 μs, 166 kHz, SOP-24

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~1.42 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~1.42

PartNumber:: ADC10154CIWM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-18

From Other Seller

Part Number:ADC10154CIWM
US $0.95 - 1.42
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADC10154CIWM is a CMOS 10-bit plus sign successive approximation A/D converter with versatile analog input 4-channel multiplexers, track/hold function and a 2.5V band-gap reference. The 4-channel multiplexers of ADC10154CIWM can be software configured for single-ended, differential or pseudo-differential modes of operation. The input track/hold of ADC10154CIWM is implemented using a capacitive array and sampled-data comparator. Resolution can be programmed to be 10-bit plus sign. Lower-resolution conversions can be performed faster. The variable resolution output data word is read in two bytes, and can be formatted left justified or right justified, high byte first. Application areas of the ADC10154CIWM include Process control, Instrumentation and Test equipment.

Parametrics

ADC10154CIWM specifications: (1)Resolution: 10-bit plus sign; (2)Integral linearity error: ±1 LSB (max); (3)Unipolar power dissipation: 33 mW (max); (4)Conversion time (10-bit + sign): 4.4 μs (max); (5)Sampling rate (10-bit + sign): 166 kHz; (6)Band-gap reference: 2.5V ±2.0% (max).

Features

ADC10154CIWM features: (1)4-channel configurable multiplexer; (2)Analog input track/hold function; (3)0V to 5V analog input range with single +5V power supply; (4)-5V to +5V analog input voltage range with ±5V supplies; (5)Fully tested in unipolar (single +5V supply) and bipolar (dual ±5V supplies) operation; (6)Programmable resolution/speed and output data format; (7)Ratiometric or Absolute voltage reference operation; (8)No zero or full scale adjustment required; (9)No missing codes over temperature; (10)Easy microprocessor interface.
