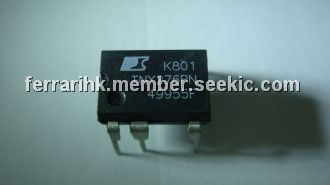

Product Summary

The TNY376PN is an Energy-Effcient, Off-Line Switcher With Enhanced Peak Power Performance. Applications are DVDs, PVRs, active speakers (e.g. PC audio), audio amplifers, modems, photo printers, PC standby, low voltage motor drives.

Parametrics

TNY376PN absolute maximum ratings: (1)EN/UV Voltage:-0.3 V to 9 V ; (2)EN/UV Current:100 mA ; (3)BP/M Voltage:-0.3 V to 9 V ; (4)Storage Temperature:-65 °C to 150 °C; (5)Operating Junction Temperature:-40 °C to 150 °C .

Features

TNY376PN features: (1)Accurate hysteretic thermal shutdown with automatic recovery provides complete system level overload protection and eliminates need for manual reset; (2)Auto-restart delivers <3% maximum power in short circuit and open loop fault conditions; (3)Output overvoltage shutdown with optional Zener ; (4)Line undervoltage detect threshold set using a single resistor ; (5)Very low component count enhances reliability and enables single sided printed circuit board layout; (6)High bandwidth provides fast turn on with no overshoot and excellent transient load response; (7)Extended creepage between DRAIN and all other pins improves feld reliability.

Diagrams

TNY376PN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TNY376PN
TNY376PN
Power Integrations
AC/DC Switching Converters 17 W 85-265 VAC 22 W 230 VAC
Data Sheet
0-1: $0.61
1-25: $0.55
25-100: $0.51
100-250: $0.47
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TNY375DG
TNY375DG
Power Integrations
AC/DC Switching Converters 12 W (85-265 VAC) 16.5 W (230 VAC)
Data Sheet
0-1: $0.77
1-25: $0.64
25-100: $0.52
100-250: $0.39
TNY375DG-TL
TNY375DG-TL
Power Integrations
AC/DC Switching Converters 12 W (85-265 VAC) 16.5 W (230 VAC)
Data Sheet
0-1890: $0.35
1890-2500: $0.33
TNY375DN
TNY375DN

IC OFFLINE SWIT UVLO 8SOIC
Data Sheet
0-600: $0.49
TNY375DN-TL
TNY375DN-TL

IC OFFLINE SWIT UVLO 8SOIC
Data Sheet
0-2500: $0.37
TNY375GN
TNY375GN
Power Integrations
AC/DC Switching Converters 12 W (85-265 VAC) 16.5 W (230 VAC)
Data Sheet
0-1: $0.90
1-25: $0.75
25-100: $0.60
100-250: $0.45
TNY375GN-TL
TNY375GN-TL
Power Integrations
AC/DC Switching Converters 12 W (85-265 VAC) 16.5 W (230 VAC)
Data Sheet
0-720: $0.43
720-1000: $0.41
1000-2500: $0.38
