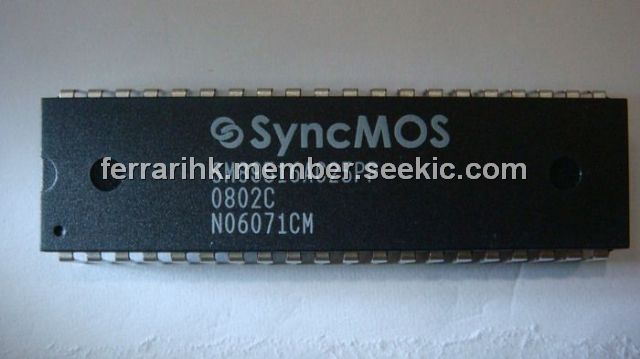

SM89516AC25PP

Product Summary

The SM89516AC25PP series product is an 8 - bit single chip micro controller with 64KB on-chip flash and 1K byte RAM embedded. It is a derivative of the 8052 micro controller family. The SM89516AC25PP has 5-channel SPWM build-in. User can access on-chip expanded RAM with easier and faster way by its bank mapping direct addressing mode scheme. With its hardware features and powerful instruction set, it is straight forward to make it a versatile and cost effective controller for those applications which demand up to 32 I/O pins for PDIP package or up to 36 I/O pins for PLCC/QFP package, or applications which need up to 64K byte flash memory for program data. To program the on-chip flash memory, a commercial writer is available to do it in parallel programming method.

Parametrics

SM89516AC25PP absolute maximum ratings: (1)TA Operating temperature: -40 to 85℃, Ambient temperature under bias; (2)TS Storage temperature: -55 to 155℃; (3)VCC5 Supply voltage: 4.5 to 5.5 V, For C Version; (4)VCC3 Supply voltage: 3 to 3.6 V, For L Version; (5)Fosc 16 Oscillator Frequency: 3.0 to 16 MHz, For 5V, 3.3V application; (6)Fosc 25 Oscillator Frequency: 3.0 to 25 MHz, For 5V, 3.3V application; (7)Fosc 40 Oscillator Frequency: 3.0 to 40 MHz, For 5V application.

Features

SM89516AC25PP features: (1)Working voltage: 3.0V ~ 3.6V For L Version; 4.5V ~ 5.5V For C Version; (2)General 8052 family compatible; (3)12 clocks per machine cycle; (4)64K byte on chip program flash; (5)1024 byte on-chip data RAM; (6)Three 16 bit Timers/Counters; (7)One Watch Dog Timer; (8)Four 8-bit I/O ports for PDIP package; (9)Four 8-bit I/O ports + one 4-bit I/O ports for PLCC or QFP package; (10)Full duplex serial channel; (11)Bit operation instruction; (12)Industrial Level; (13)8-bit Unsigned Division; (14)8-bit Unsigned Multiply; (15)BCD arithmetic; (16)Direct Addressing; (17)Indirect Addressing; (18)Nested Interrupt; (19)Two priority level interrupt; (20)A serial I/O port; (21)Power save modes: Idle mode and Power down mode; (22)Code protection function; (23)Low EMI (inhibit ALE); (24)Bank mapping direct addressing mode for access on-chip RAM; (25)5 channel SPWM function with P1.3 ~ P1.7.

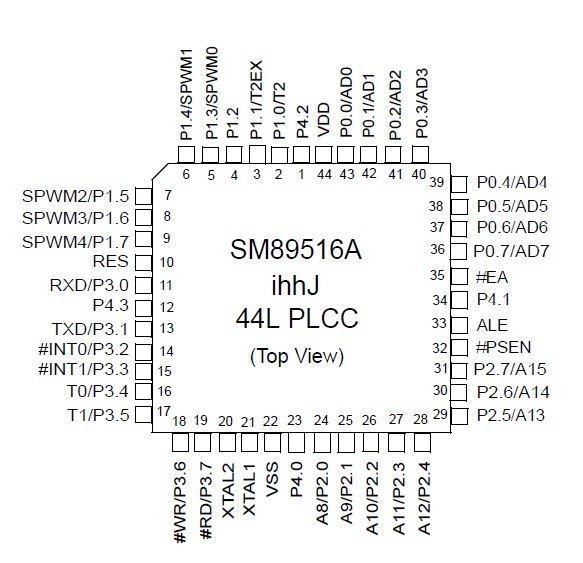

Diagrams
