Product Summary
The MAX5035DUSA easy-to-use, high-efficiency, high-voltage, step-down DC-DC converter operates from an input voltage up to 76V and consumes only 350μA quiescent current at no load. The applications of the MAX5035DUSA are Consumer Electronics, Industrial, Distributed Power. The MAX5035DUSA delivers up to 1A output current. External shutdown is included, featuring 10uA (typ) shutdown current.
Parametrics
MAX5035DUSA absolute maximum ratings: (1)VIN:-0.3V to +80V; (2)SGND: -0.3V to +0.3V; (3)LX:-0.8V to (VIN + 0.3V); (4)BST: -0.3V to (VIN + 10V); (5)BST (transient < 100ns): -0.3V to (VIN + 15V); (6)BST to LX:-0.3V to +10V; (7)BST to LX (transient < 100ns): -0.3V to +15V; (8)ON/OFF:-0.3V to (VIN + 03V); (9)VD:-0.3V to +12V; (10)Storage Temperature Range:-65°C to +150°C; (11)Junction Temperature:+150°C; (12)Lead Temperature (soldering, 10s):+300°C.
Features
MAX5035DUSA features: (1)Wide 7.5V to 76V Input Voltage Range; (2)Fixed (3.3V, 5V, 12V) and Adjustable (1.25V to 13.2V) Versions; (3)1A Output Current; (4)Efficiency Up to 94%; (5)Internal 0.4Ω High-Side DMOS FET; (6)350uA Quiescent Current at No Load, 10uA Shutdown Current; (7)Internal Frequency Compensation; (8)Fixed 125kHz Switching Frequency; (9)Thermal Shutdown and Short-Circuit Current Limit; (10)8-Pin SO and PDIP Packages.

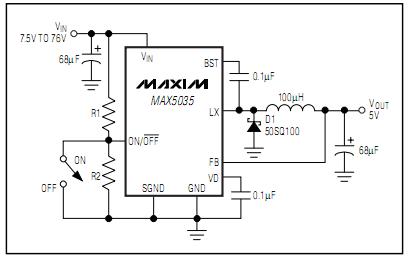

Diagrams
