Product Summary

The ADC0838CCN is an 8-bit successive approximation A/D converter with serial I/O and configurable input multiplexers with up to 8 input channels. All errors of the sample-and-hold, incorporated on the ADC0838CCN are accounted for in the analog-to-digital converters accuracy specification.

Parametrics

ADC0838CCN absolute maximum ratings: (1)Current into V+: 15mA; (2)Supply Voltage, VCC: 6.5V; (3)Voltage Logic Inputs: –7 to VCC +7V; (4)Analog Inputs: –0.3V to VCC +0.3V; (5)Input Current per Pin: ±25mA; (6)Storage Temperature: –65℃ to 150℃; (7)Package Dissipation; (8)at TA = 25℃ (Board Mount): 800mW; (9)Lead Temperature (Soldering 10 sec.): 260℃; (10)Vapor Phase (60 sec.): 215℃; (11)Infrared (15 sec.): 220℃.

Features

ADC0838CCN features: (1)Conversion time: 6μs; (2)Total unadjusted error: ±1/2LSB or ±1LSB; (3)Sample-and-hold: 375ns acquisition; (4)2, 4 or 8-input multiplexer options; (5)0 to 5V analog input range with single 5V power supply; (6)Operates ratiometrically or with up to 5V voltage reference; (7)No zero or full-scale adjust required; (8)ML2281 capable of digitizing a 5V, 40kHz sine wave; (9)Low power: 12.5mW MAX; (10)Superior pin compatible replacement for ADC0831, ADC0832, ADC0834, and ADC0838; (11)Analog input protection: 25mA (min) per input; (12)Now in 8-Pin SOIC Package (ML2281, ML2282).

Diagrams

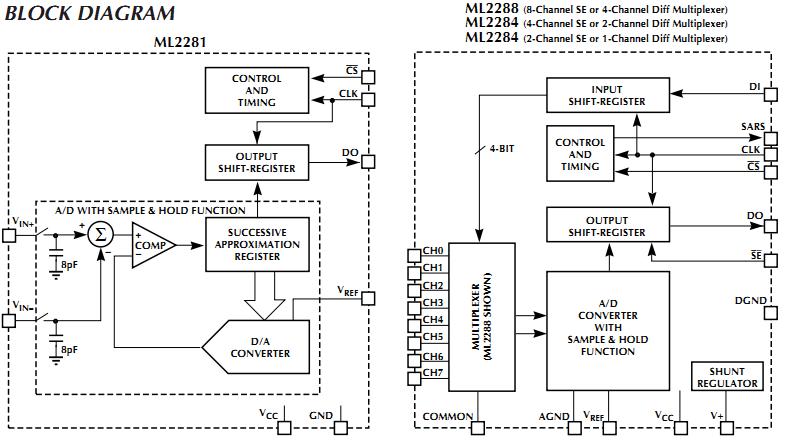

ADC0838CCN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

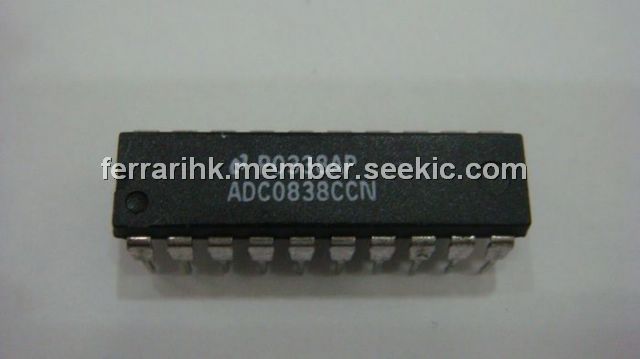

ADC0838CCN
ADC0838CCN
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-324: $1.06
324-504: $0.95
504-1008: $0.80
1008-2502: $0.76
ADC0838CCN/NOPB
ADC0838CCN/NOPB
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-1: $1.78
1-25: $1.43
25-100: $1.29
100-250: $1.15
