Product Summary

The AD536AJQ is a complete monolithic integrated circuit which performs true rms-to-dc conversion. It offers performance which is comparable or superior to that of hybrid or modular units costing much more. The AD536AJQ directly computes the true rms value of any complex input waveform containing ac and dc components. It has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the AD536AJQ extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV. The AD536AJQ is laser trimmed at the wafer level for input and output offset, positive and negative waveform symmetry (dc reversal error), and full-scale accuracy at 7 V rms. As a result, no external trims are required to achieve the rated unit accuracy.

Parametrics

AD536AJQ absolute maximum ratings: (1)Supply Voltage: Dual Supply:±18 V, Single Supply:+36 V; (2)Internal Power Dissipation:500 mW; (3)Maximum Input Voltage:±25 V Peak; (4)Buffer Maximum Input Voltage:±VS; (5)Maximum Input Voltage:±25 V Peak; (6)Storage Temperature Range:–55℃ to +150℃; (7)Operating Temperature Range:0℃ to +70℃; (8)Lead Temperature Range(Soldering 60 sec):+300℃; (9)ESD Rating:1000V.

Features

AD536AJQ features: (1)True RMS-to-DC Conversion; (2)Laser-Trimmed to High Accuracy: 0.5% Max Error; (3)Wide Response Capability: Computes RMS of AC and DC Signals, 450kHz Bandwidth: V rms ＞ 100mV, 2 MHz Bandwidth: V rms ＞1V, Signal Crest Factor of 7 for 1% Error; (4)dB Output with 60 dB Range; (5)Low Power: 1.2 mA Quiescent Current; (6)Single or Dual Supply Operation; (7)Monolithic Integrated Circuit.

Diagrams

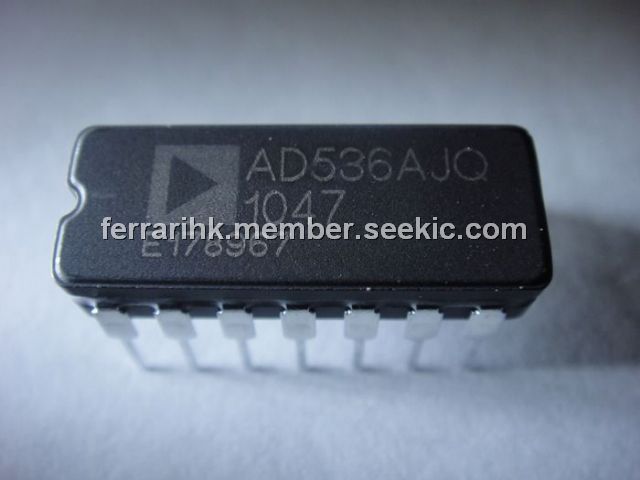

AD536AJQ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD536AJQ
AD536AJQ

IC TRUE RMS/DC CONV 14-CDIP
Data Sheet
0-1: $9.49
1-25: $7.98
25-100: $7.33
100-250: $6.69
250-500: $6.26
500-1000: $5.75
