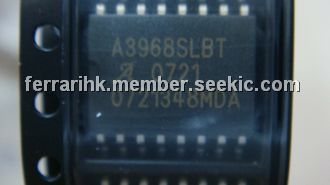

Product Summary
The A3968SLBT is a dual full-bridge pwm motor driver with brake. The A3968SLBT is designed to bidirectionally control two dc motors. The A3968SLBT includes two H-bridges capable of continuous output currents of ±650 mA and operating voltages to 30 V. Motor winding current can be controlled by the internal fixed-frequency, pulse-width modulated (PWM), current-control circuitry. The peak load current limit is set by the user’s selection of a reference voltage and current-sensing resistors.
Parametrics
A3968SLBT absolute maximum ratings: (1)Load Supply Voltage, VBB: 30 V; (2)Output Current, IOUT (peak): ±750 mA; (3)Logic Supply Voltage, VCC: 7.0 V; (4)Input Voltage, Vin: -0.3 V to VCC + 0.3 V; (5)Sense Voltage, VS: 1.0 V; (6)Package Power Dissipation (TA = 25℃), PD: 1.8 W; (7)Operating Temperature Range, TA: -20 to +85℃; (8)Junction Temperature, TJ: +150℃; (9)Storage Temperature Range, TS: -55 to +150℃.
Features
A3968SLBT features: (1)±650 mA Continuous Output Current; (2)30 V Output Voltage Rating; (3)Internal Fixed-Frequency PWM Current Control; (4)Satlington Sink Drivers; (5)Brake Mode; (6)User-Selectable Blanking Window; (7)Internal Ground-Clamp & Flyback Diodes; (8)Internal Thermal-Shutdown Circuitry; (9)Crossover-Current Protection and UVLO Protection.

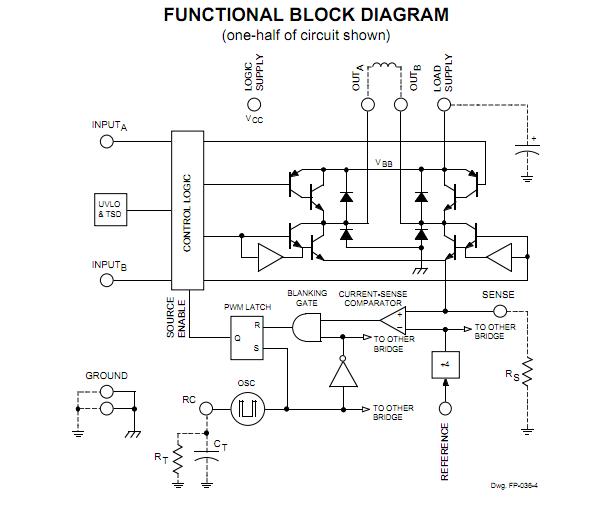

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A3968SLBTR |
|
IC MOTOR DRIVER PWM DUAL 16SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
A3968SLBTR-T |
|
IC MOTOR DRIVER PWM DUAL 16SOIC |
Data Sheet |
|
|
||||||||||||||||
