Product Summary
The STM32F103C8T6 is one of the medium-density performance line family. It is a MCU. The STM32F103C8T6 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
Parametrics
STM32F103C8T6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD):–0.3V to 4.0V; (2)Input voltage on five volt tolerant pin:VSS-0.3V to +5.5V; (3)Input voltage on any other pin:VSS-0.3V to VDD+0.3V; (4)Variations between different VDD power pins:50mV; (5)Variations between all the different ground pins: 50mV.
Features
STM32F103C8T6 features: (1)72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1)performance at 0 wait state memory access; (2)Single-cycle multiplication and hardware division; (3)2.0 to 3.6 V application supply and I/Os ; (4)POR, PDR, and programmable voltage ; (5)detector (PVD); (6)4-to-16 MHz crystal oscillator ; (7)Internal 8 MHz factory-trimmed RC; (8)Internal 40 kHz RC; (9)PLL for CPU clock; (10)32 kHz oscillator for RTC with calibration; (11)low power; (12)Conversion range: 0 to 3.6 V; (13)Dual-sample and hold capability; (14)Temperature sensor.

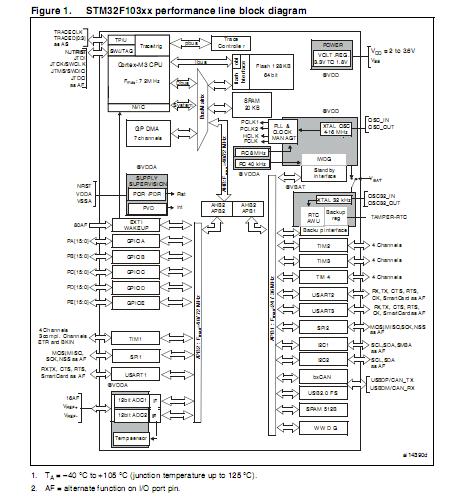

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103C8T6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC |
Data Sheet |
|
|
||||||||||||
|
STM32F103C8T6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 USB 7 TIMERS 2 ADCS CAN |
Data Sheet |
|
|
||||||||||||
