Product Summary

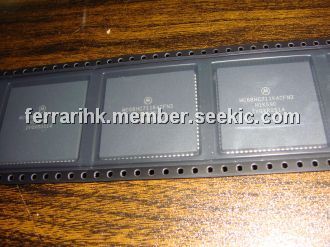

The MC68HC711K4CFN microcontroller unit (MCU) is high-performance derivative of the MC68HC11F1 and have several additional features. The MC68HC711K4CFN, with a nonmultiplexed expanded bus, is characterized by high speed and low power consumption. Its fully static design allows operation at frequencies from 4 MHz to dc.
Features
MC68HC711K4CFN features: (1)M68HC11 CPU; (2)Power Saving STOP and WAIT Modes; (3)768 Bytes RAM (All Saved During Standby); (4)24 Kbytes ROM or EPROM; (5)640 Bytes Electrically Erasable Programmable Read Only Memory(EEPROM); (6)Optional Security Feature Protects Memory Contents; (7)On-Chip Memory Mapping Logic Allows Expansion to Over 1 Mbyte of Address Space; (8)PROG Mode Allows Use of Standard EPROM Programmer (27C256 Footprint); (9)Nonmultiplexed Address and Data Buses; (10)Four Programmable Chip Selects with Clock Stretching (Expanded Modes); (11)Enhanced 16-Bit Timer with Four-Stage Programmable Prescaler; (12)8-Bit Pulse Accumulator; (13)Four 8-Bit or Two 16-Bit Pulse Width Modulation (PWM) Timer Channels; (14)Real-Time Interrupt Circuit; (15)Computer Operating Properly (COP) Watchdog; (16)Clock Monitor.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC711K4CFN4 |
|
IC MCU 24K OTP 4MHZ 84-PLCC |
Data Sheet |
Negotiable |
|
||||
