Product Summary

The APA600-PQG208I is an Actel’s secondgeneration Flash FPGA. It offers enhanced performance over Actel’s ProASIC family. It combines the advantages of ASICs with the benefits of programmable devices through nonvolatile Flash technology. This enables engineers to create high-density systems using existing ASIC or FPGA design flows and tools. In addition, the APA600-PQG208I offers a unique clock conditioning circuit based on two on-board phase-locked loops (PLLs). The APA600-PQG208I offers up to one million system gates, supported with up to 198 kbits of two-port SRAM and up to 712 user I/Os, all providing 50 MHz PCI performance.

Parametrics

APA600-PQG208I absolute maximum ratings: (1)Supply Voltage Core (VDD): –0.3 to 3.0 V; (2)Supply Voltage I/O Ring (VDDP): –0.3 to 4.0 V; (3)DC Input Voltage: –0.3 to VDDP + 0.3 V; (4)PCI DC Input Voltage: –1.0 to VDDP + 1.0 V; (5)PCI DC Input Clamp Current (absolute): 10 mA at VIN < –1 or VIN = VDDP + 1 V; (6)LVPECL Input Voltage: –0.3 to VDDP + 0.5 V; (7)GND: 0 V.

Features

APA600-PQG208I features: (1)Commercial and Industrial: 75,000 to 1 Million System Gates; (2)27 k to 198 kbits of Two-Port SRAM, 66 to 712 User I/Os; (3)Military: 300, 000 to 1 million System Gates, 72 k to 198 kbits of Two Port SRAM, 158 to 712 User I/Os; (4)Reprogrammable Flash Technology: 0.22 μm 4 LM Flash-Based CMOS Process, Live At Power-Up (LAPU) Level 0 Support; (5)Single-Chip Solution, No Configuration Device Required, Retains Programmed Design during Power-Down/Up Cycles, Mil/Aero Devices Operate over Full Military Temperature Range.

Diagrams

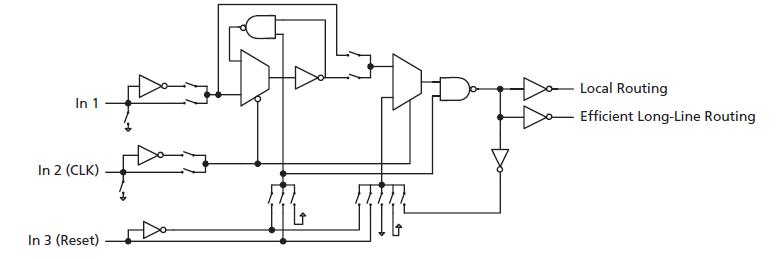

APA600-PQG208I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APA600-PQG208I
APA600-PQG208I


IC FPGA PROASIC+ 600K 208-PQFP

Data Sheet

0-24: $207.71
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APA600
APA600

Other


Data Sheet

Negotiable
APA600-BG456
APA600-BG456


IC FPGA PROASIC+ 600K 456-PBGA

Data Sheet

0-24: $192.89
APA600-BG456I
APA600-BG456I


IC FPGA PROASIC+ 600K 456-PBGA

Data Sheet

0-24: $218.84
APA600-BGG456
APA600-BGG456


IC FPGA PROASIC+ 600K 456-PBGA

Data Sheet

0-24: $192.89
APA600-BGG456I
APA600-BGG456I


IC FPGA PROASIC+ 600K 456-PBGA

Data Sheet

0-24: $218.84
APA600-CGS624B
APA600-CGS624B


IC FPGA PROASIC+ 600K 624-CGA

Data Sheet

0-1: $3,951.63
