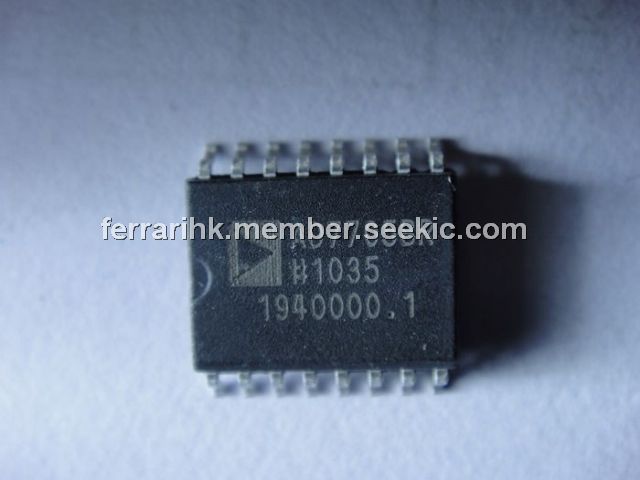

AD7705BR

Two Fully Differential, Input Channel, ADC, Three-Wire Serial Interface, 16pin-SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.80~3.20

PartNumber:: AD7705BR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:AD7705BR
US $2.80 - 3.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

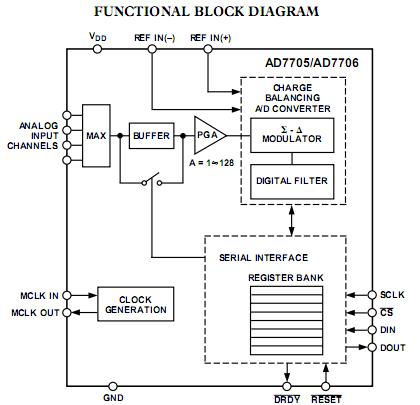

The AD7705BR is a Two Fully Differential Input Channel ADC. It is a complete analog front end for low frequency measurement applications. The AD7705BR can accept low level input signals directly from a transducer and produce a serial digital output. The selected input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The AD7705BR features a differential reference input. Input signal ranges of 0 mV to +20mV through 0 V to +2.5V can be incorporated on both devices when operating with a VDD of 5 V and a reference of 2.5 V. It is ideal for use in smart, microcontroller or DSP-based systems.

Parametrics

AD7705BR absolute maximum ratings: (1)VDD to GND:–0.3V to +7V; (2)Analog Input Voltage to GND:–0.3V to VDD + 0.3V; (3)Reference Input Voltage to GND:–0.3V to VDD + 0.3V; (4)Digital Input Voltage to GND:–0.3V to VDD + 0.3V; (5)Digital Output Voltage to GND:–0.3V to VDD + 0.3V; (6)Operating Temperature Range: Commercial (B Version):–40℃ to +85℃; (7)Storage Temperature Range:–65℃ to +150℃; (8)Junction Temperature:+150℃; (9)SOIC Package, Power Dissipation:450 mW, θJA Thermal Impedance:75℃/W; (10)Lead Temperature, Soldering: Vapor Phase (60 sec):+215℃, Infrared (15 sec):+220℃; (11)ESD Rating:>4000V.

Features

AD7705BR features: (1)Two Fully Differential Input Channel ADCs; (2)16 Bits No Missing Codes; (3)0.003% Nonlinearity; (4)Programmable Gain Front End:Gains from 1 to 128; (5)Three-Wire Serial Interface: SPI, QSPI, MICROWIRE and DSP Compatible, Schmitt Trigger Input on SCLK; (6)Ability to Buffer the Analog Input; (7)2.7 V to 3.3 V or 4.75 V to 5.25 V Operation; (8)Power Dissipation 1 mW max @ 3V; (9)Standby Current 8 mA max; (10)16-Lead DIP, 16-Lead SOIC and TSSOP Packages.
