IRF530N

HEXFET Power MOSFET, 100V, 70W, 17A, 90mΩ, TO-220AB, IRF530N

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.37 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.37

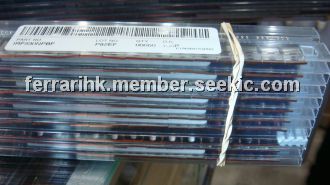

PartNumber:: IRF530N

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Hong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-12

From Other Seller

Part Number:IRF530N
US $0.32 - 0.37
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF530N is a HEXFET Power MOSFET. It utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF530NPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF530N absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 17 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 12 A; (3)IDM Pulsed Drain Current: 60 A; (4)PD @TC = 25℃ Power Dissipation: 70 W; (5)Linear Derating Factor: 0.47 W/℃; (6)VGS Gate-to-Source Voltage: ± 20 V; (7)IAR Avalanche Current: 9.0 A; (8)EAR Repetitive Avalanche Energy: 7.0 mJ; (9)dv/dt Peak Diode Recovery dv/dt: 7.4 V/ns; (10)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 175 ℃; (11)Soldering Temperature, for 10 seconds 300 (1.6mm from case )℃.

Features

IRF530N features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-Free.
